AutoScaling allow you to automatically add or remove your EC2 instances according to your defined condition. To setup autoscaling we create autoscaling group and defined launch configuration for that group so, whenever any instance added in to group it will use that launch configuration .
Following are the step to setup auto scaling on AWS
1. Create AMI of EC2 instance
AMI (Amazon Machine Image) is used while new instance is created automatically. We define unique AMI id (e.g ami-xxxxxxxx) in launch configuration.

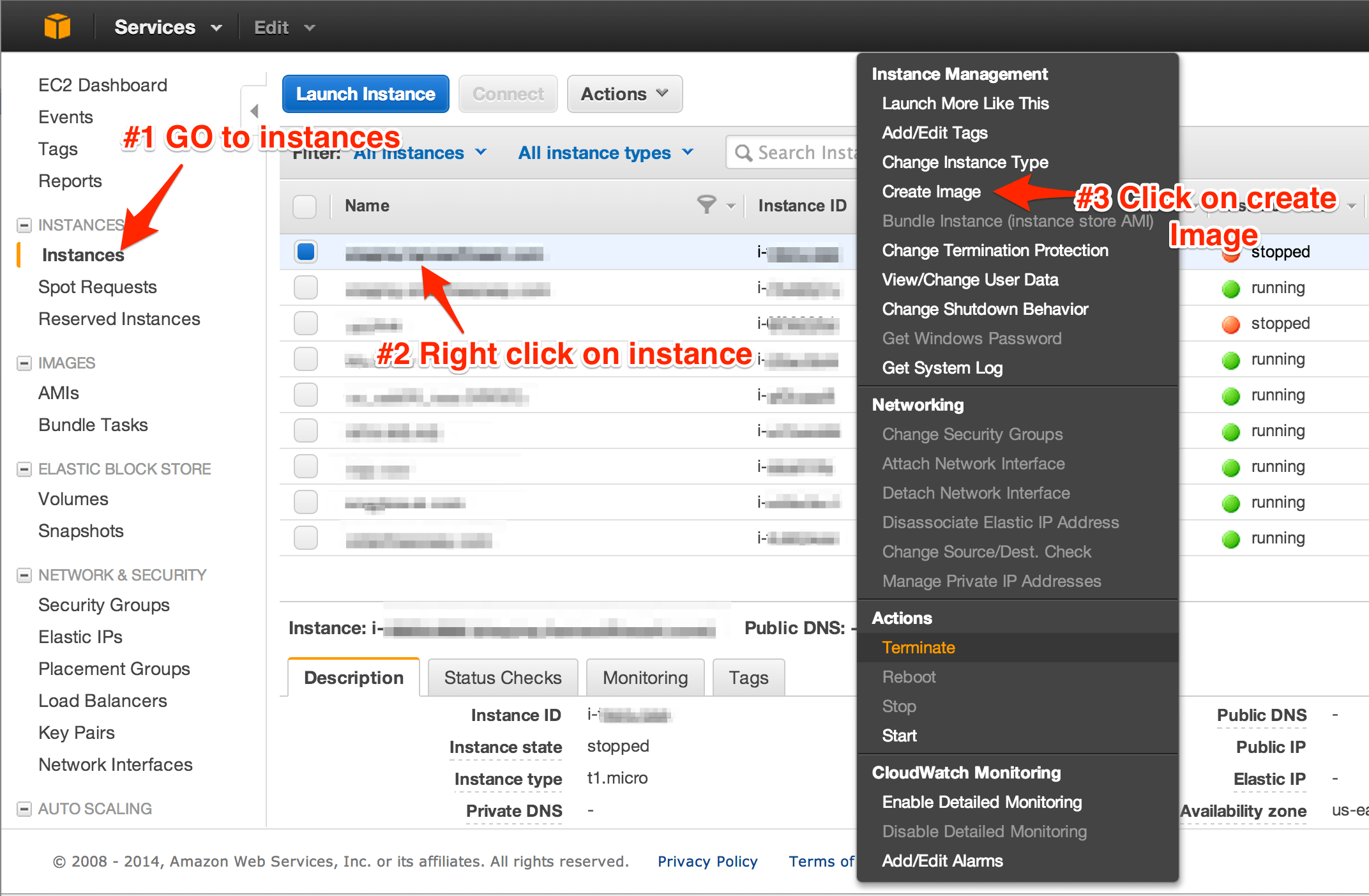

Following is the first step to create AMI (there is alternative option also).

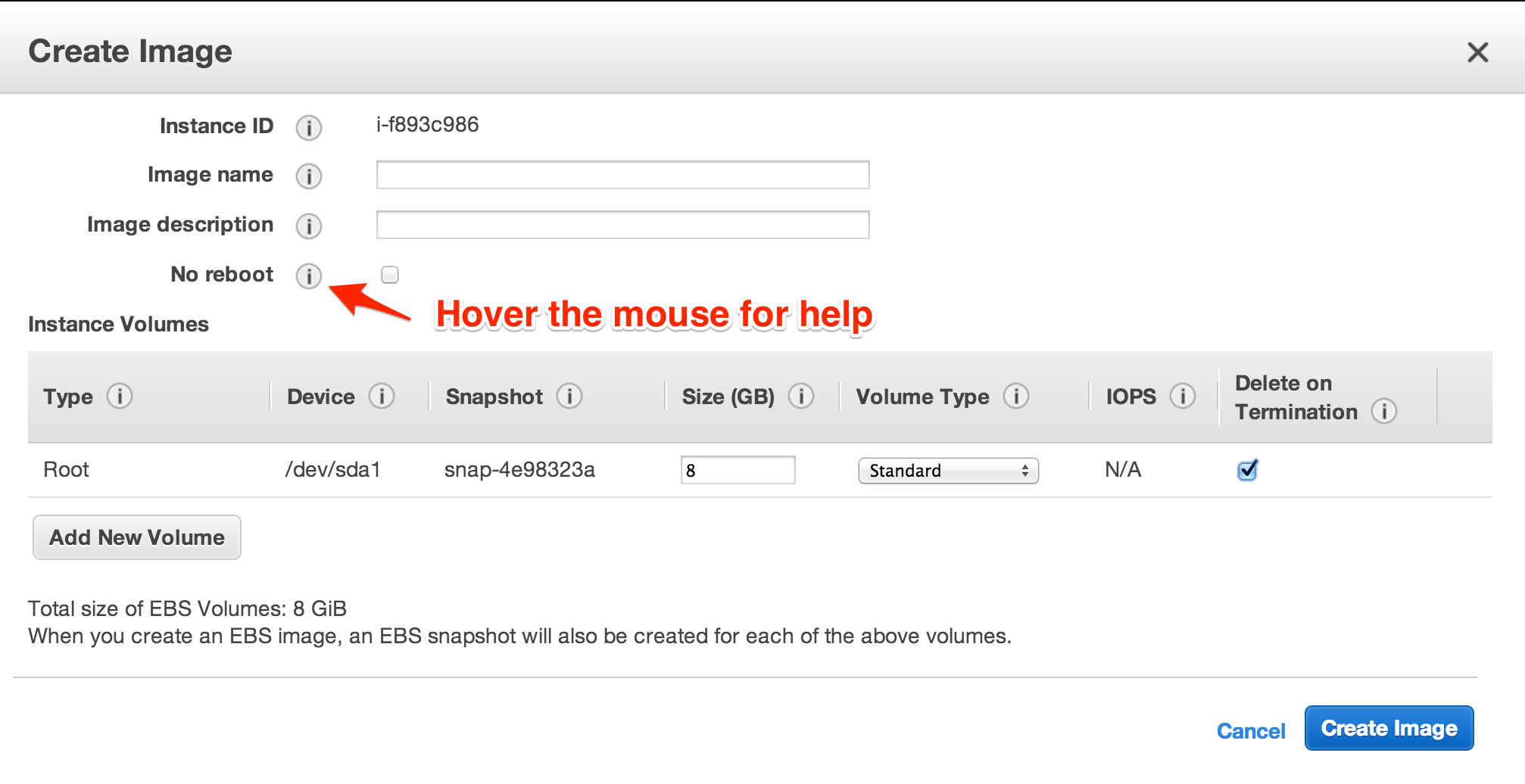

In next step it will ask for Image Name, description and other options. Please use help for more info.
After clicking Create Image button, It will start create image process and give you unique AMI id something like ami-xxxxxxxx that will required in create launch configuration. It will take time to create image depend on the size of your EBS.
2. Create launch configuration
This is the required step to setup autoscaling. As name state, Launch configuration is used when any instance is added to autoscaling group. There are some required field like launch-configuration-name, image-id, instance-type, key, security-groups.
Lets create launch configuration.

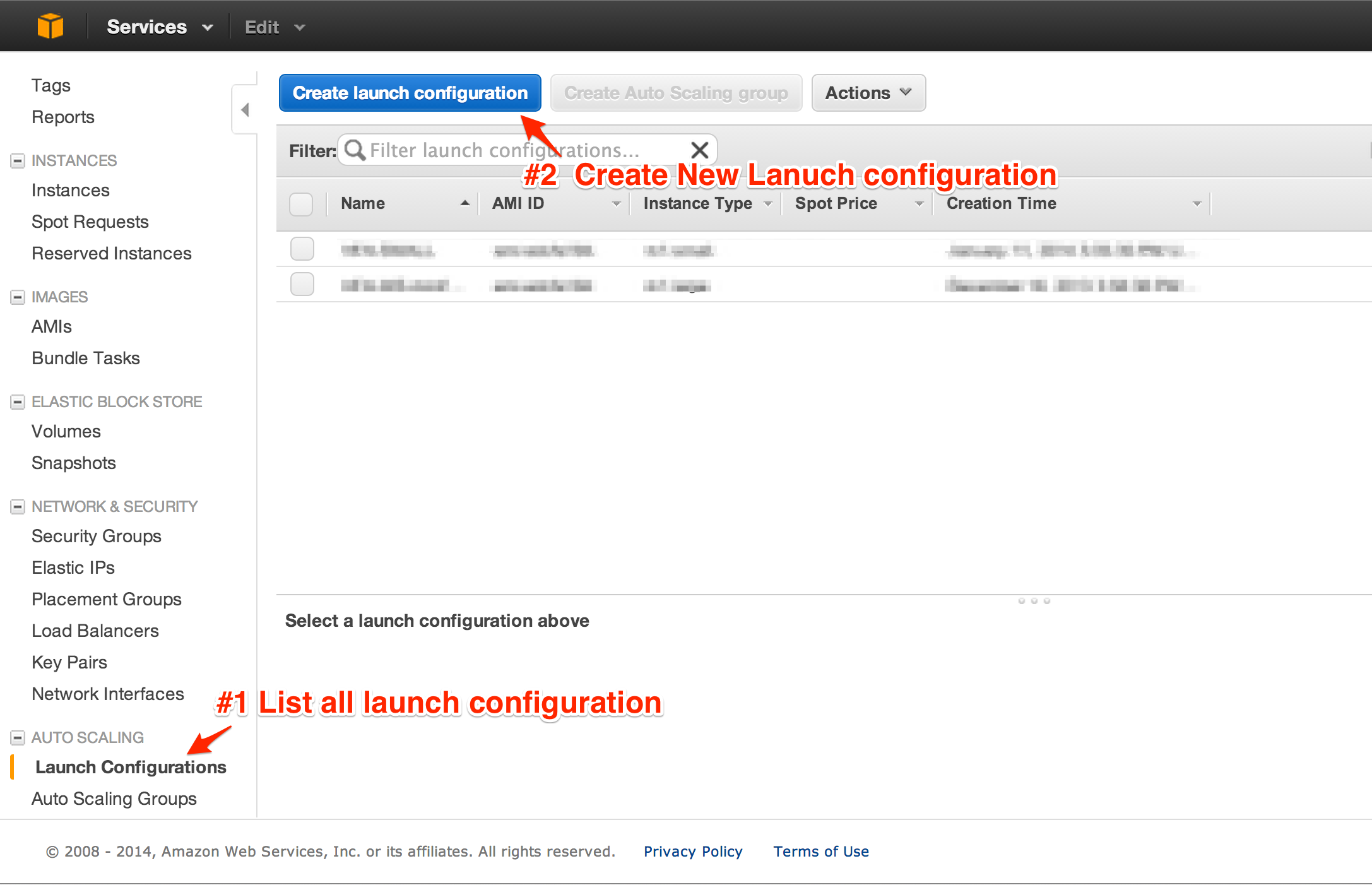

Step 1 : Go to Launch Config Page and Start Create Launch configuration

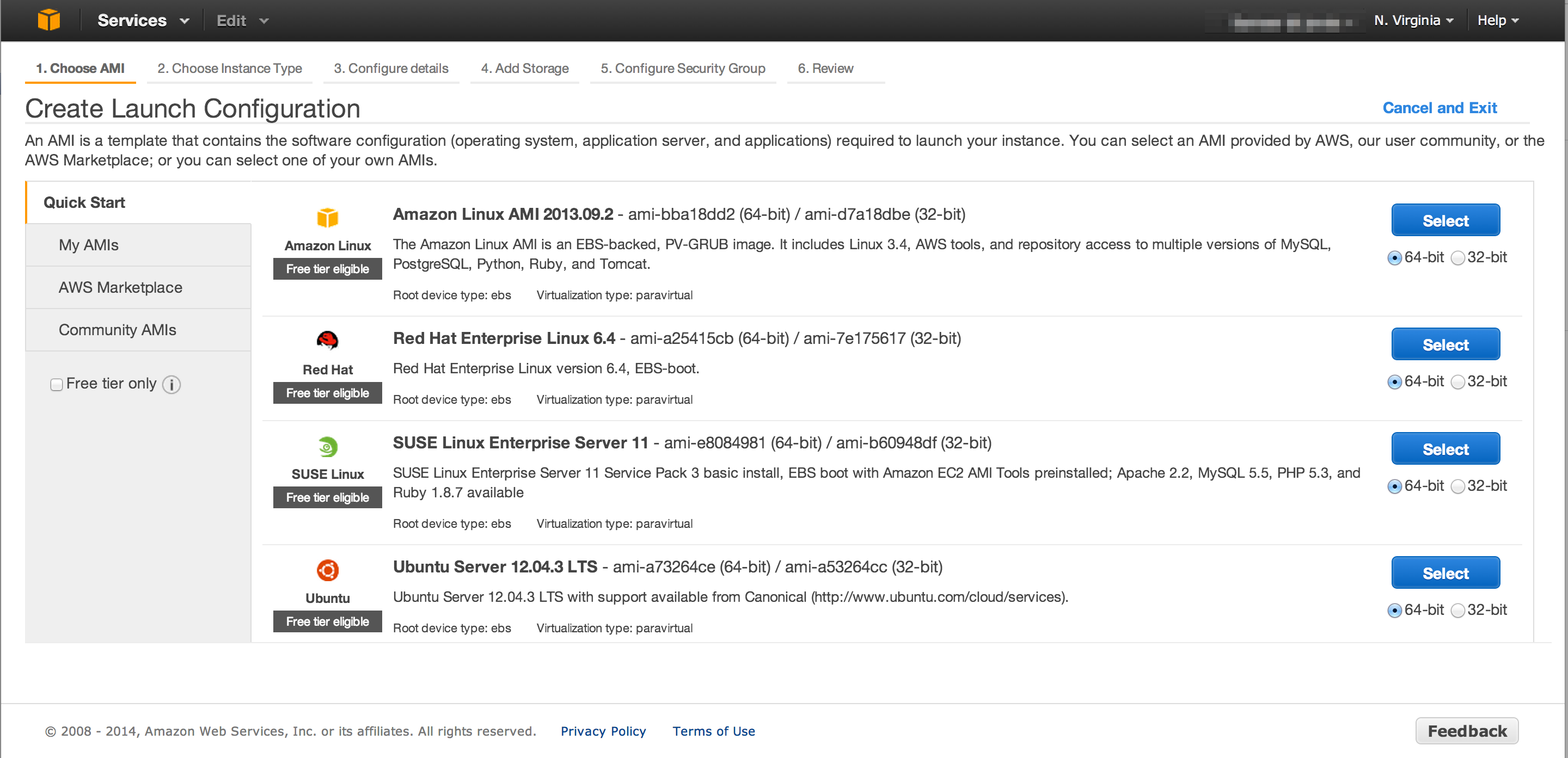

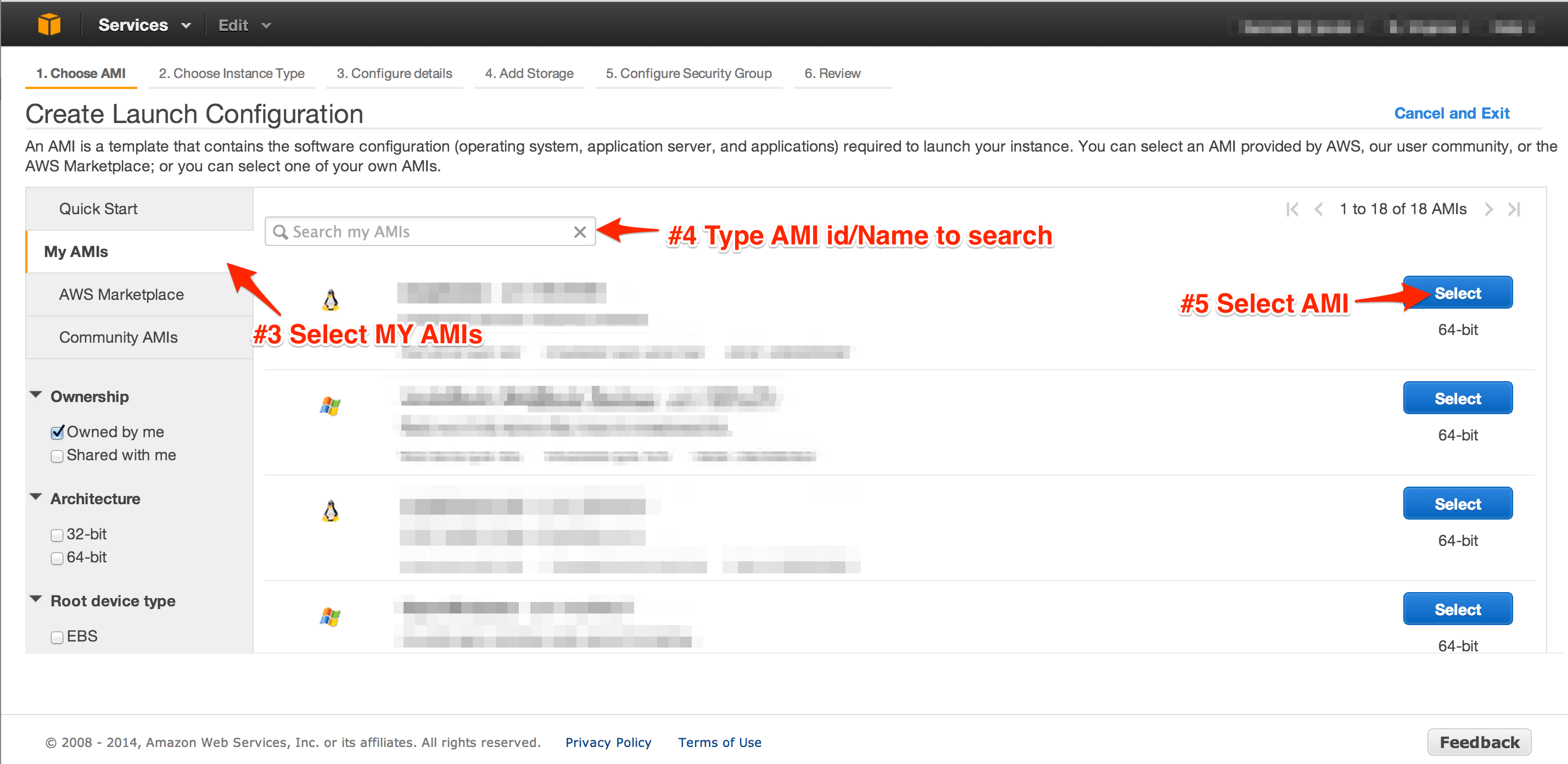

Step 2 : Select AMI
OR you select existing EMI if you are already created

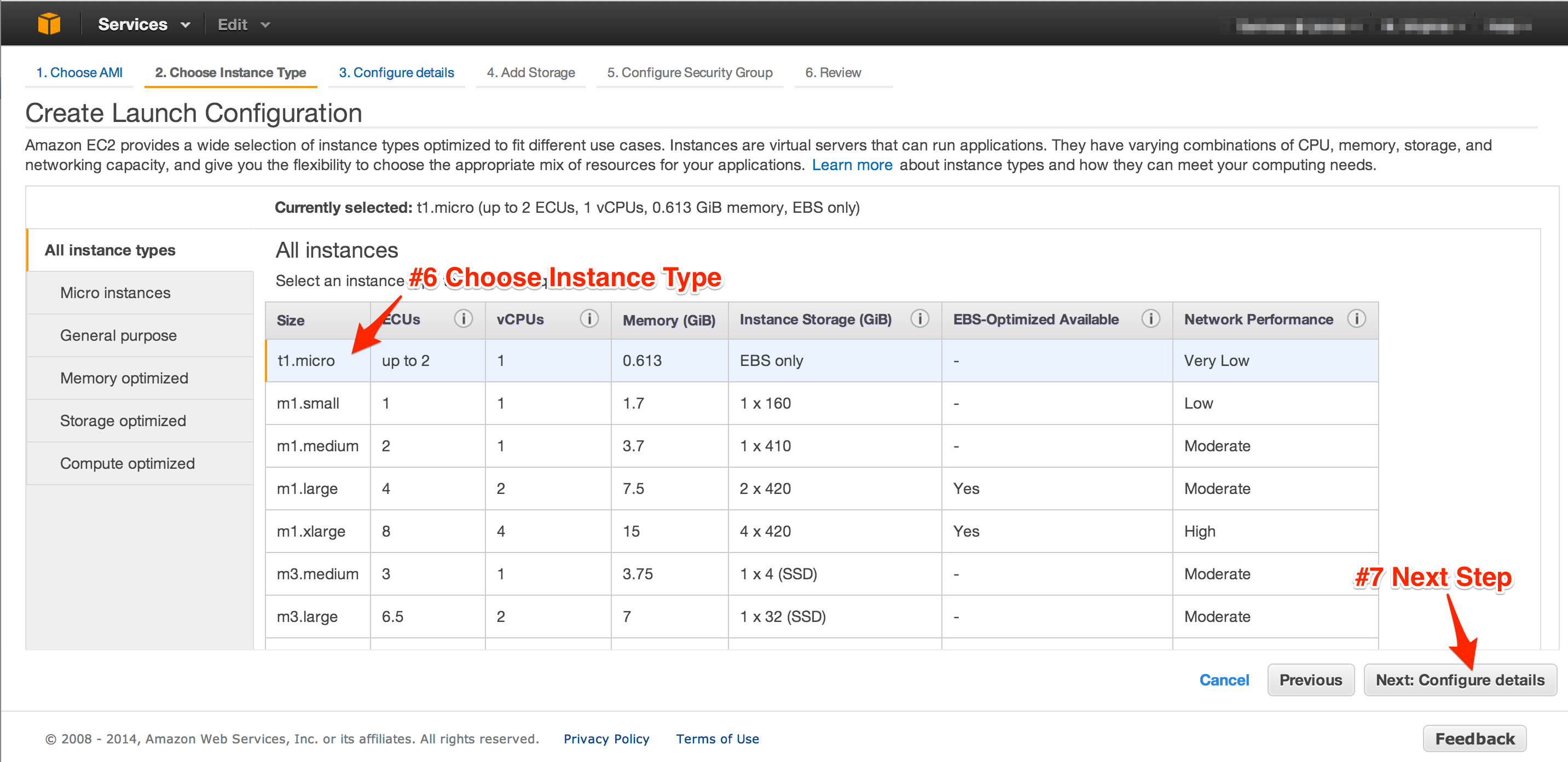

Step 3 : Choose Instance Type

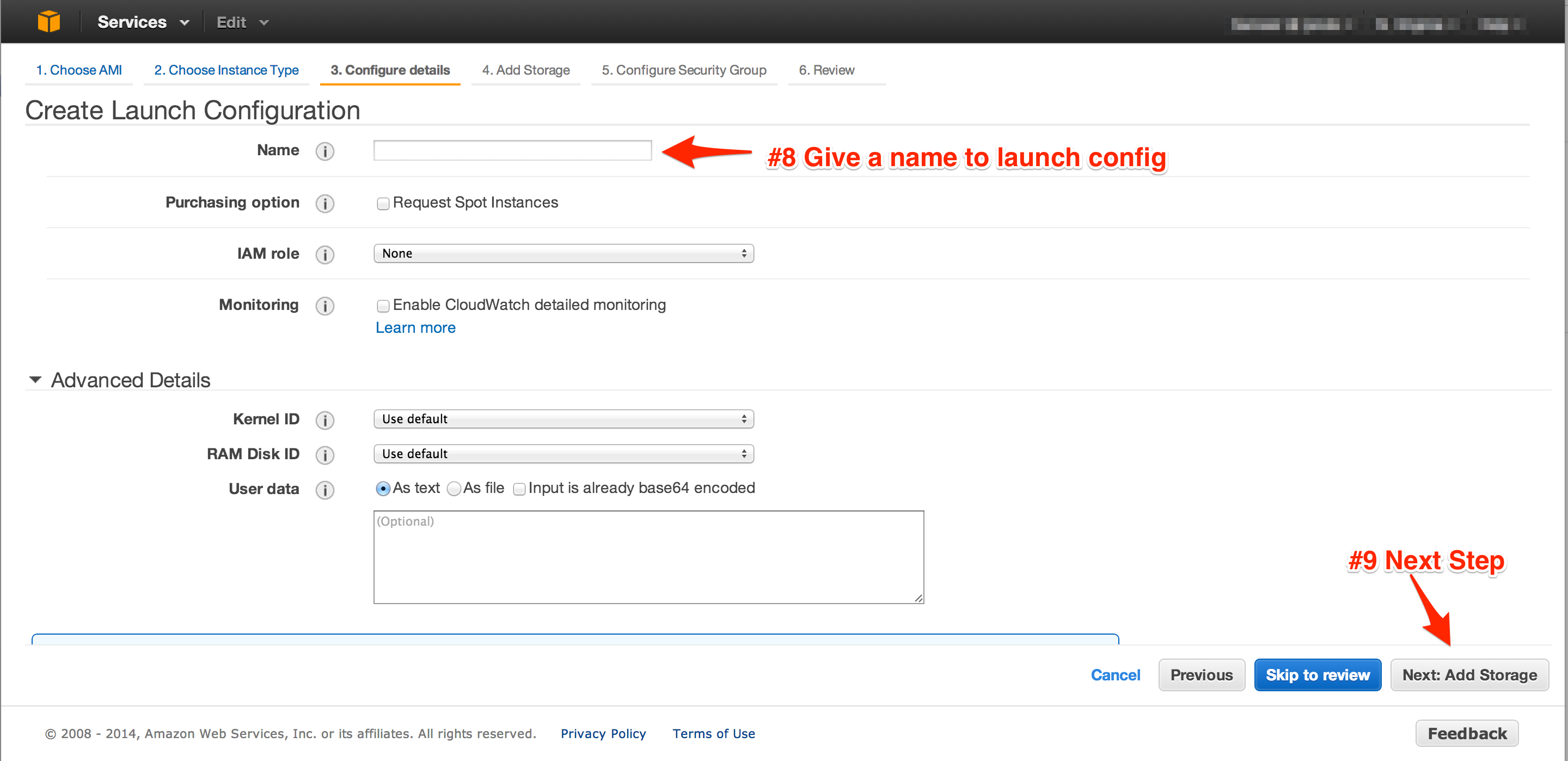

Step 4 : Name launch configuration & other info

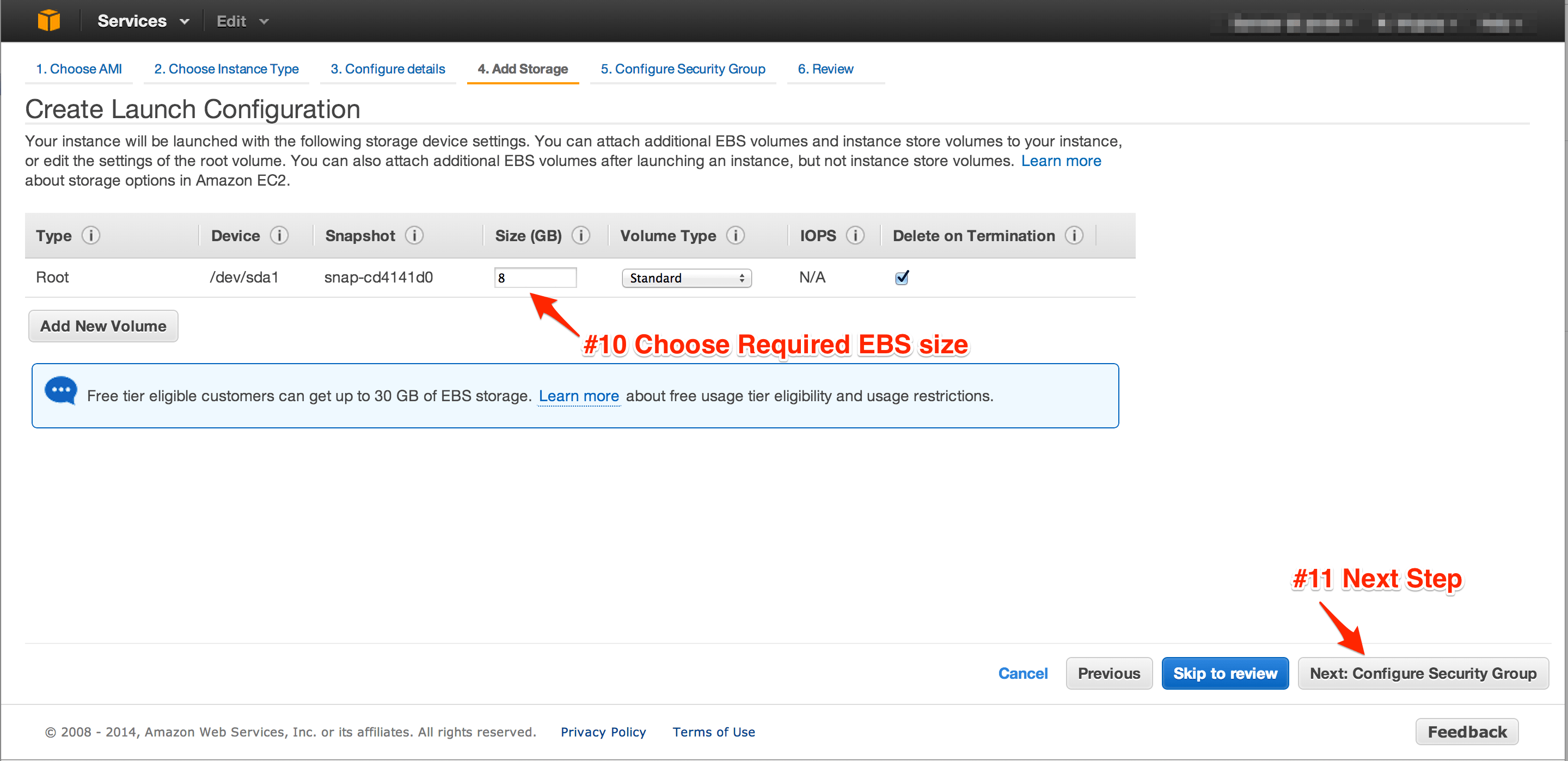

Step 5 : Choose Storage

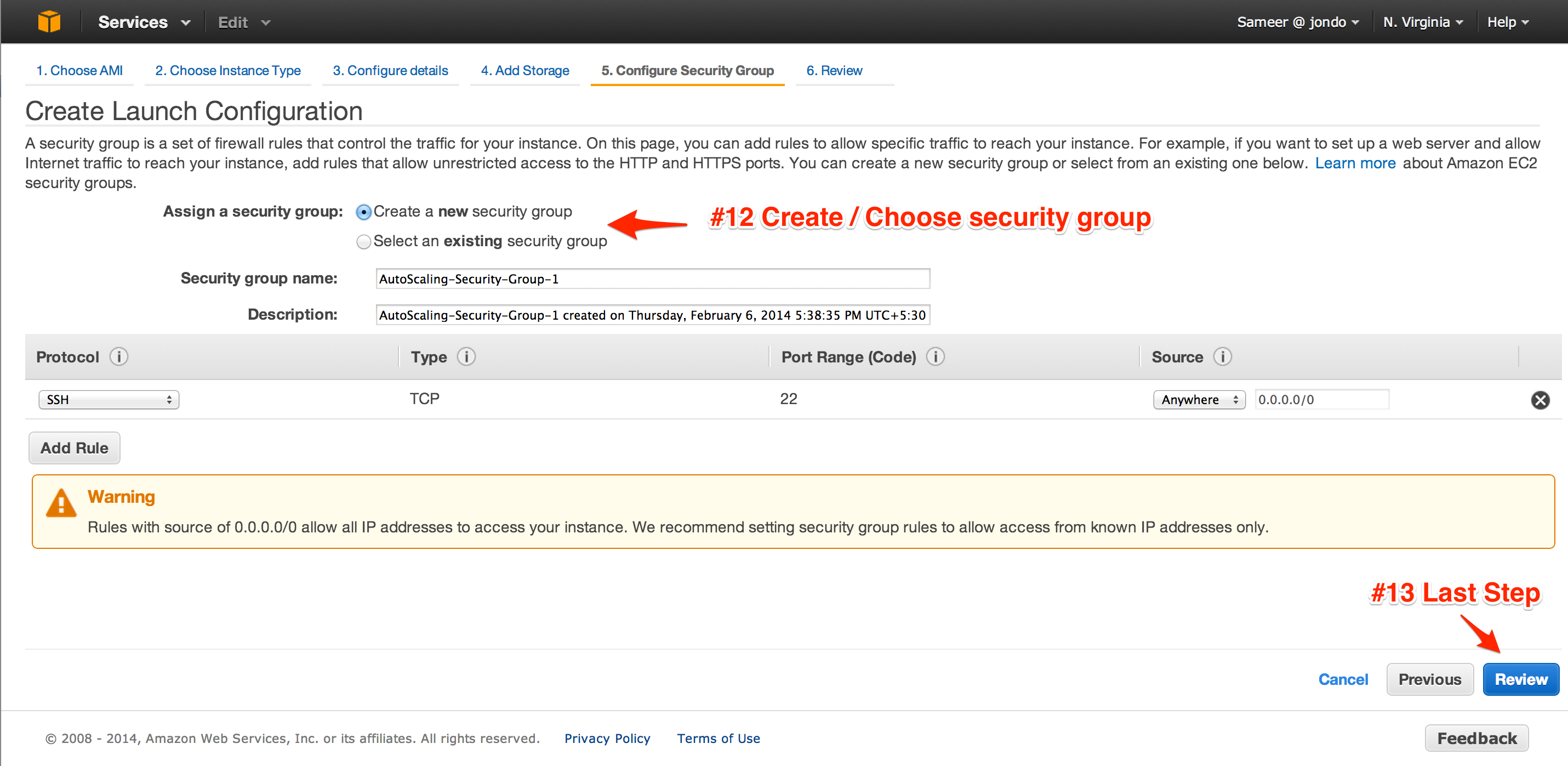

Step 6 : Choose Security Group

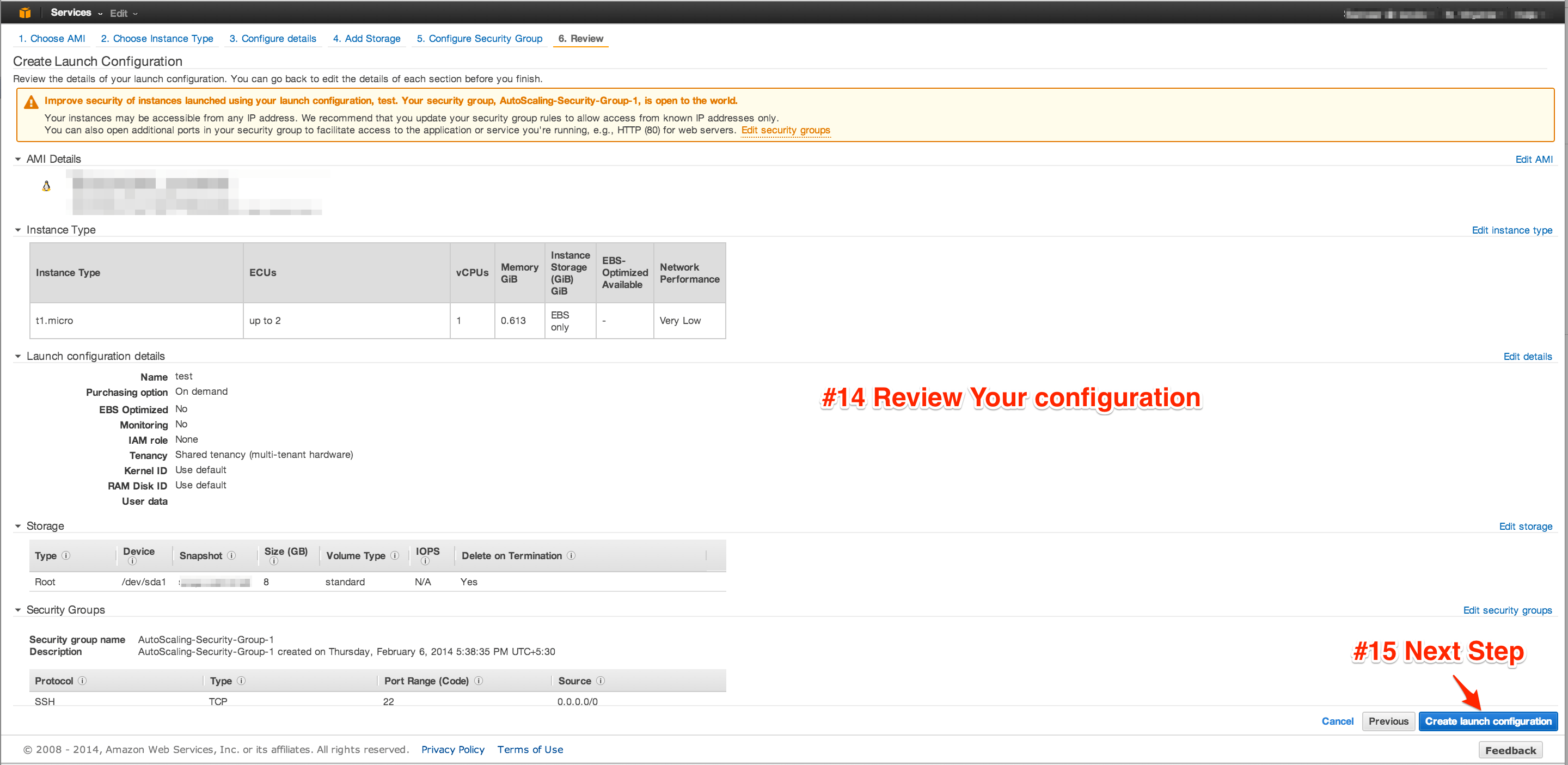

Step 7 : Review

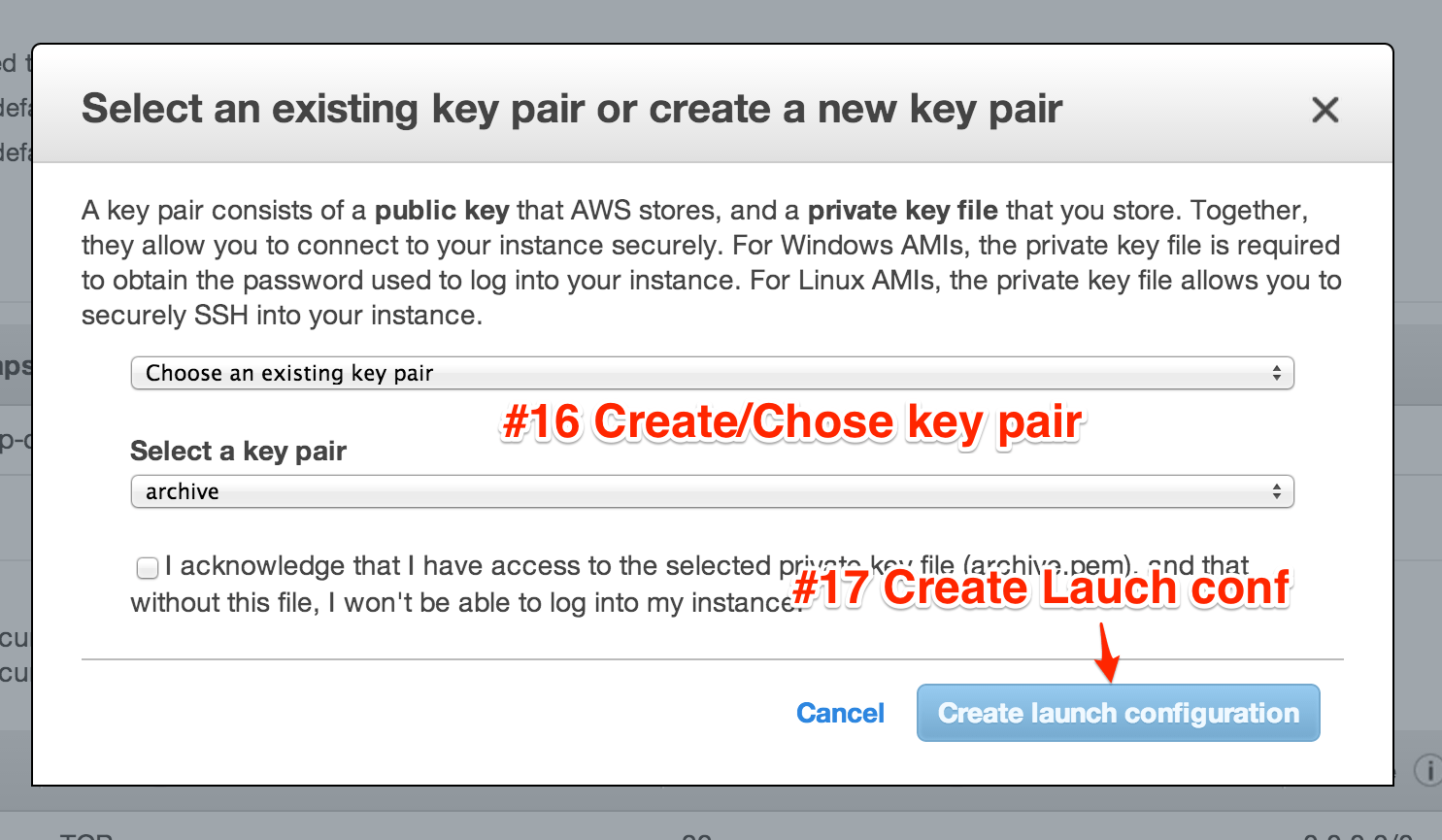

Step 8 : Choose Key pair
If you are use cli then type following command to create launch config
aws autoscaling create-launch-configuration --launch-configuration-name aws-as-conf --image-id ami-xxxxxxxx --instance-type m1.large --key myPrivate --security-groups mySecurityGroup
To List all launch configuration
aws autoscaling describe-launch-configurations
3. Create Autoscaling Group
Autoscaling group use launch configuration to create instance and add it into group. There are some require parameters like availability-zones, min/max-size, load-balancer-names, health-check-type etc
@TODO : UI Steps
If you are use cli then type following command to
aws autoscaling create-auto-scaling-group --auto-scaling-group-name test-autoscal-group --launch-configuration aws-as-conf --availability-zones us-east-1a us-east-1b --min-size 1 --max-size 5 --load-balancer-names test-lb --health-check-type ELB --health-check-grace-period 300 --tag "k=Name, v=Test AS, p=true"
Add instance policy :
aws autoscaling put-scaling-policy --auto-scaling-group-name test-autoscal-group --policy-name test-as-add-one --scaling-adjustment 1 --adjustment-type ChangeInCapacity
Remove instance policy :
aws autoscaling put-scaling-policy --auto-scaling-group-name test-autoscal-group --policy-name test-as-remove-one --scaling-adjustment -1 --adjustment-type ChangeInCapacity
Creating Cloud watch alarms from UI
@TODO: UI steps
